1535nm Laser Rangefinder Module，Compact and Accurate Laser Ranging Module for Rugged Environments,diffuse reflectance ≥0.3, humidity ≤80%, the vehicle

YZT-CJ -0610A

Laser Range Finder Module

Technical Specification

Product Description

• Small size and lightweight
• Class I human eye safety standards
• Stable performance and easy-to-use
• Provide customization service
• Distance measurement for vehicle (2.3*2.3m) over 4km
• Developed based on 1535nm Er: Glass Laser

1. General

YZT-CJ-0610A laser ranging module is the eye safety laser ranging module in the photoelectric system, which can detect the target distance and transmit the measured distance to the host computer through serial communication.

2. Structure composition and main function index

The YZT-CJ-0610A laser ranging module consists of a laser, a transmitting optical system, a receiving optical system and a control circuit. The main performance is as follows:

2.1 Operating range

Visibility under visible conditions is not less than 10km, diffuse reflectance ≥0.3, humidity ≤80%, the vehicle (2.3m×2.3m target) ranging distance ≥6km.

2.2 Features

The main functions of the laser ranging module are:

a) single ranging and continuous ranging;

b) Range strobe, front and rear target indication;

c) Self-inspection function.

2.3 Performance

• Wavelength: 1535nm±5nm;
• Laser divergence Angle: ≤0.5mrad;
• Continuous ranging frequency: 1~10Hz adjustable;
• Ranging accuracy: ≤±2m (RMS);
• Accuracy: ≥98%;
• Minimum measuring range: ≤30m;
• Ranging resolution: ≤30m (multi-target);
• Power supply voltage: DC9V ~ 16V (can be customized);
• Weight: ≤70g;
• Power: average power consumption ≤1.5W (1Hz operation), peak power consumption ≤5W;
• Size: ≤72mm×45mm×35mm;
• Working temperature: -40℃ ~ +60℃;
• Storage temperature: -50℃ ~ +70℃;

2.4 Interface

Communication interface: RS422, 115200bps

Electrical interface: The interface model is Molex connector 51021-0800. The interface definition is described in the following table.

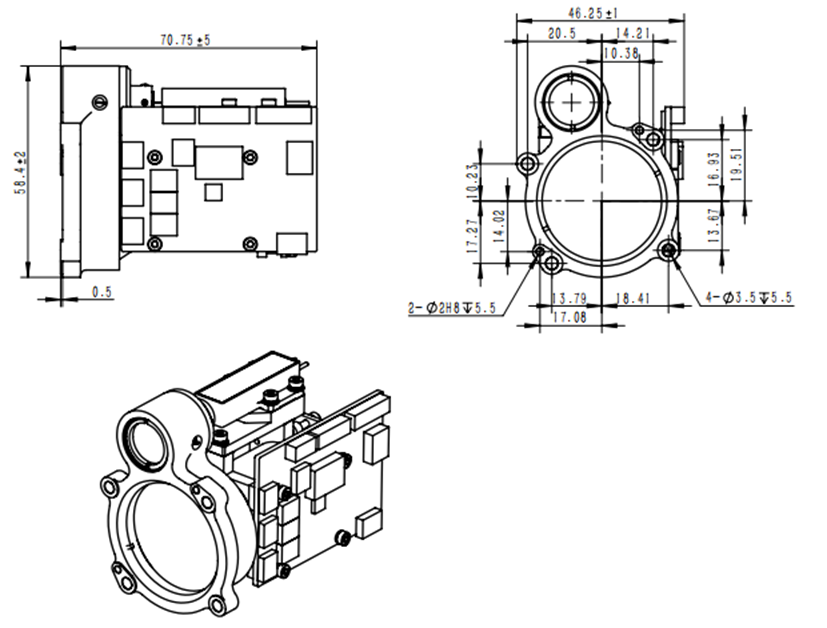

2.5 Installation dimension

3. Precautions for use

• The laser emitted by the rangefinder is 1535nm for human eye safety laser, although it is a human eye safety wavelength, but it is recommended not to look directly at the laser;
• When adjusting the parallelism of the optical axis, the receiving lens must be blocked, otherwise the detector will be permanently damaged due to excessive echo;
• The measuring module is non-airtight, and must ensure that the relative humidity of the use environment is less than 80%, and ensure that the use of the environment is clean and sanitary, so as not to damage the laser;
• The range measurement of the rangefinder is related to the atmospheric visibility and the nature of the target, and the range measurement will be reduced in the case of fog, rain and wind sand. Green leaf clusters, white walls, exposed limestone and other targets have better reflectivity, which can increase the measurement range. In addition, when the Angle of the target to the laser beam increases, the measurement range will be reduced.
• It is strictly forbidden to emit laser to strong reflection targets such as glass and white walls within 20 meters, so as to avoid too strong echo, resulting in damage to the APD detector;
• Do not plug and unplug the cable in the energized state;
• Ensure that the power supply polarity connection is correct, otherwise it will cause permanent damage to the equipment;
