Industrial Thermal Solution: FOVA X8 Drone w/ 30.7° DFOV, 5m-∞ Focus, Medical Palette

Name: Industrial Thermal Solution FOVA X8 Drone w 307 DFOV 5m Focus Medical Palette
Brand: FOVA
Price: 1 USD

China Industrial Thermal Solution: FOVA X8 Drone w/ 30.7° DFOV, 5m-∞ Focus, Medical Palette factory

Brand Name : FOVA

Model Number : FOVA X8 Thermal

Place Of Origin : SHENZHEN

Certification : ROHS

MOQ : 2

Price : Negotiable

Packaging Details : 242*334*72.6 Mm (Without Paddle)

Delivery Time : 30

Payment Terms : T/T

Supply Ability : 10000pcs/Mouth

Max Speed : 15m/S

Control Distance : 500m

Headless Mode : Yes

Maximum Speed : 60km/h

Propellers : 5045

Altitude Hold : Yes

Response Time : Less Than 10ms

Housing Material : Stainless Steel

Contact Now

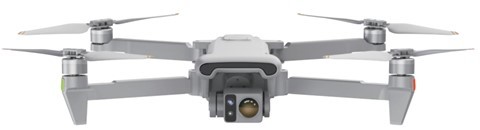

FOVA X8 Thermal

Mini Unmanned Aerial

l Takeoff Weight 1025g

l Max.Flight Time 47 min

l Wheelbase 372 mm

l Max.Flight Speed 18 m/s

Parameters

Aircraft
Folding Body Size	20410672.6 mm (Without paddle)
Expanded Body Size	24233472.6 mm (Without paddle)
Bare Weight	855 g
Take-off Weight	1205 9
Wheelbase	372 mm
Max. Ascent Speed	5 m/s
Max. Descent Speed	4 m/s
Max. Flight Speed	18 m/s
Max. Takeoff Altitude	<6000 m
Max. Flight Time	47 min
Max. Range	33km
Max. Wind Rating	Level 7
Operating Temperature	-10~40°C
GNSS	GPS+GLONASS+BeiDou+Galileo
Expansion Joint	12-PIN Data Connector (Female)
Hovering Accuracy	Vertically ±0.1 m / +0.5 m,Horizontal ±0.3 m / ±0.5 m
Wide Angle Camera
Image Sensors Digital Zoom	1/2-inch CMOS, 48 megapixels
Digital Zoom	1~5X
Camera Lens	FOV 79°
Aperture	F/1.6
Camera Focus	4.71 mm
Equivalent Focal Length	24 mm
Depth	1 m to infinity
IS0 Scope	Video 100-26500, photos 100-6400
Shutter Speed	1/8000 sec. to 2 sec
Effective Pixel	48 million
Max. lmage Size	8064*6048
Max. Video Resolution	3840*2160@30fps
Video Max. Bitrate	100 Mbps
Video Format	MP4
lmage Format	JPEG / DNG

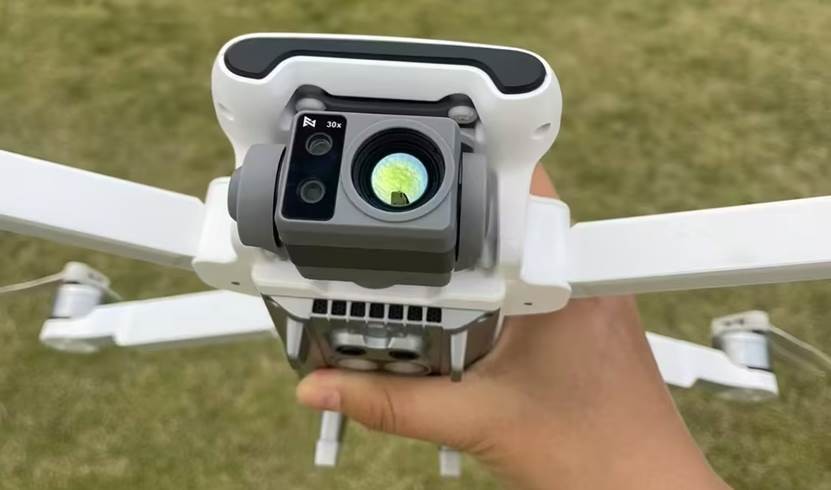

Infrared Thermal Imaging Sensor
Pixel pitch	12 microns
Video Resolution	640*480@30fps
Focal length	19mm
Equivalent Focal Length	80 mm
DFOV	30.7°
Aperture	F11
Focusing Distance	5 m to infinity
Palette	White Heat / Black Heat / Jungle /lron Red / Rainbow / Aurora Borealis /Shimmer / Glow Gold / Red Heat /Medical / Gold Red
Long Focus Camera
lmage Sensors	1/2.5-inch CMOS
Digital Zoom	5-30X
Camera Lens	FOV 21.5°
Aperture	F/3.0
Camera Focus	14.46 mm
Equivalent Focal Length	120 mm
Depth	10 m to infinity
Effective Pixel	12 million
IS0 Scope	Video 100-6400, photos 100-6400
Shutter Speed	1/8000 sec. to 2 sec.
Max. lmage Size	4000*3000
Max. Video Resolution	3840*2160@30fps
Video Max. Bitrate	100 Mbps
Video Format	MP4
lmage Format	JPEG / DNG
File System	FAT32 / exFAT
Long Life Edition Smart Battery
Capacity	5000 mAh≈333 g
Weights	14.4 V
Rated Voltage	16.8 V
Charge Limit Voltage	Li-ion 4S
Battery Type	72wh
Energy	0～40°C
Charging EnvironmentTemperature	5000 mAh≈333 g
